10000 mAh Mi Power Bank 3
Travel light with a smaller Mi 10000mAh Ultra Compact Power Bank
Compact design | High-quality battery core | Smart fast charging
10000 mAh high capacity, ultra-compact
USB-A/USB-C for an output of up to 22.5 W
Simultaneous charging for smartphones, tablets and the Switch
Fully charged in 3.5 hours

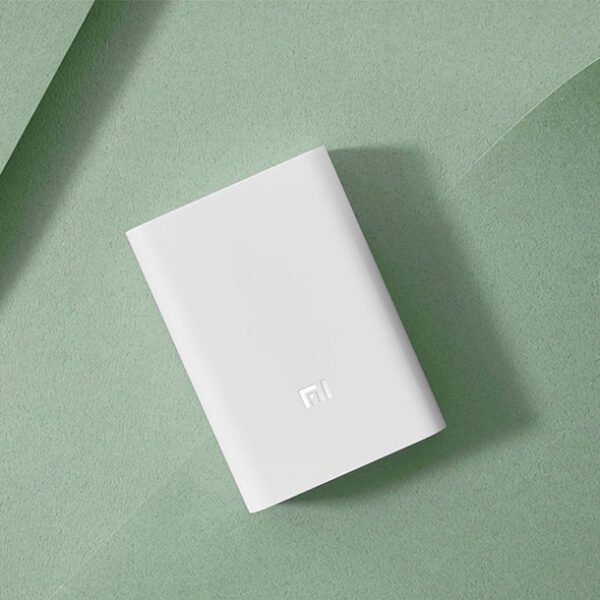

Mini power bank fits right in your pocket
The ultra-compact body weighs approximately 200 g* and just 1/3* larger than the standard charger for the Mi Notebook, fits right in your pocket*.
10000 mAh high capacity, enough to fully charge your smartphone three times*
Able to provide three full charges for the new iPhone SE2 using a high-quality lithium ion polymer battery.
Redmi K30
1.6 charges
Mi 10
1.4 charges
Mi 10 Pro
1.6 charges
iPhone SE2
3.1charges

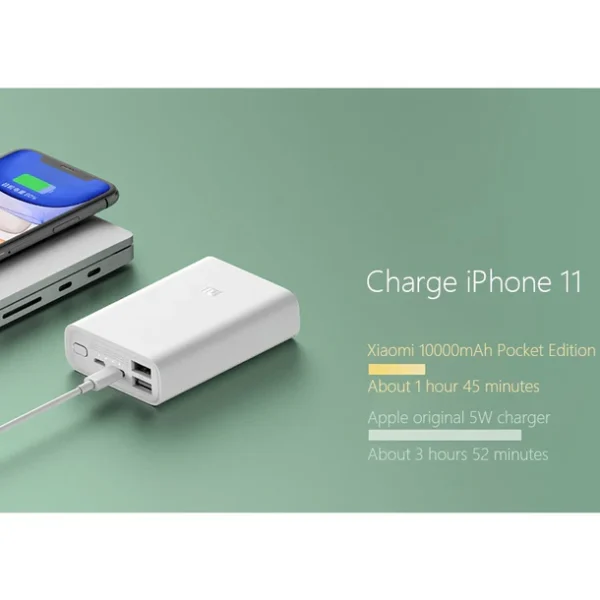

22.5 W high output reduces charging time by 54%
The USB-A and USB-C ports support 22.5 W single-port MAX output, providing fast charging for smart devices. Together with the Type-C to Lightning Cable, charging time for the iPhone 11 is reduced by approximately 54% when compared to the standard Apple 5 W charger.
Able to charge three devices simultaneously compatible with smartphones, tablets and the Switch
In addition to the two USB-A output ports, there is also a USB-C output port. The three ports can be used simultaneously to charge three devices at once.
USB-C two-way fast charging Faster power bank charging experience
Features two high-power input ports: USB-C and Micro-USB. The USB-C port supports two-way fast charging and has 22.5 W MAX input capability, greatly reducing the time needed to charge the power bank.
3.5 hours* Power bank charging time
Easy to use Supports low-current charging
Tap the “Check Battery” button twice to switch into low-current charging mode to charge low-current devices such as Mi Bluetooth Headset, Mi Smart Band, etc.* Easily satisfies your everyday charging needs for low-current devices.
High-quality IC chips For safer, everyday use
Employs high-precision capacitance and inductance sensors, plus advanced circuit chips to effectively upgrade the conversion rate and stabilise the discharging voltage, while simultaneously offering multi-protection for circuits. Guaranteed everyday power supply for users.
Temperature protection
Short circuit protection
Reset protection
Input overvoltage protection
Input overcurrent protection
Output overcurrent protection
Output overvoltage protection
Overcharge and over-discharge protection
Hardware-level overvoltage short circuit protection
Design Features
Eco-friendly casing* PC + ABS casing for peace of mind
Hidden keys Ingeniously designed with one-piece moulding
LED indicator Check your battery level at a glance
Package contents
Mi 10000mAh Ultra Compact Power Bank
USB-A to USB-C Cable
User manual
Technical Specifications
Product model no.
PB1022ZM
Input port
USB-C/Micro-USB
Working temperature
5℃ to 35℃
Power bank conversion rate
74% (5V/3A)
Battery type
Lithium-ion polymer battery
Output port
USB-A/USB-C
Charging time
Approximately 3.5 hours (PD 24 W charger or above, C to C cable)
Approximately 6 hours (5V/2A charger, included cable)
Battery power
37 Wh, 3.7 V, 10000 mAh
Input parameters
USB-C 5V=3A, 9V=2.5A Micro-USB 5V=2A, 9V=2A
Product dimensions
90 × 63.9 × 24.4 mm
Rated capacity
5500 mAh (5V/3A)
Output parameters
22.5 W MAX
Multiple ports 5V=3A
USB-A – 5V=2.4A, 9V=2.5A MAX, 12V=1.85A MAX
USB-C – 5V=3A, 9V=2.5A MAX, 12V=1.85A MAX
Disclaimer
* Complies with international aviation standards: single portable charging device with a capability of less than 100 Wh, UN38.3 certified. UN38.3 certification issued by Shanghai TECH. Chemical Industry Testing Co., Ltd., Test Report No.: NO.1120060280.
*Just 1/3 larger than the standard charger for the Mi Notebook: the dimensions of the 10000mAh Mi Power Bank 3 Ultra Compact are 90×63.9×24.4 mm and the dimensions of the standard charger for the Mi Notebook are 30.8×60×57mm (not including pins), so the 10000mAh Mi Power Bank 3 Ultra Compact is just 1/3 larger than the standard charger for the Mi Notebook.
*Fits right in your pocket: the 10000mAh Mi Power Bank 3 Ultra Compact weighs approximately 200 g and has a small body. When not in use it can easily be stored in a pocket. Confined spaces may compromise heat dissipation of the power bank and other devices when in use. Therefore, when charging mobile phones and other devices for extended periods of time, do not put the power bank, mobile phone or other device in your pocket in order to ensure good heat dissipation for your phone and other devices.
*Enough to charge a smartphone three times: at a room temperature of 25±2°C, an iPhone SE (A2298) was tested. The fully-charged 10000mAh Mi Power Bank 3 Ultra Compact was able to fully charge an iPhone SE (A2298) in airplane mode with 1% battery approximately 3.1 times.
*Mi Type-C to Lightning Cable (1m): the cable connects at the USB-C port of the power bank and can be used to charge Apple devices with Lightning charging ports. The cable is not included in the package and needs to be purchased separately.
*Fully charged in 3.5 hours: a 24 W or above charger and C to C cable were used for the test. The cable and charger are not included in the package and need to be purchased separately.
*The 10000mAh Mi Power Bank 3 Ultra Compact also supports low-current charging for Bluetooth headsets and smart bands by brands other than Xiaomi.
*Eco-friendly casing: the RoHS environmental protection test was performed by Dongguan EMTEK Technology Co., Ltd., Test Report No.: ED200511006CR001. Unless otherwise noted, all data above are measured values from Zimi laboratories. However, the data may vary subject to objective environmental changes (e.g. device software versions, ambient temperature).
